Accutrak



EARPHONES

Smartwatch









CHARGING CASE





Problem

The existing fitness trackers fail to recognize all types of workout, leading to inaccurate overall fitness results



Solution

  Accutrak fitness trackers records all types of activities accurately and helps you reach your goals. It becomes more personalized with an AI trainer that records your activities and pushes you to exceed your limits.





         Concept with mechanism

Smart Watch

  • Heart Rate Sensor
  • Pedometer
  • Haptic Feedback Motor
  • Gyroscope
  • Accelerometer
  • Bluetooth

Earphones

  • AI Personal Trainer
  • Ambient Noise
  • Music Capability
  • Bluetooth Connection
  • Heart Rate Sensor


                  Motion Form Study Gym Workouts

Recorded different gym workout movements by studying which part of body and muscles are being used in every

exercise and what needed to be tracked by the fitness tracker for accurate results.



                     Testing Earphones ergonomics

Designing sleek and ergonomic fit earphones that can be used comfortably for rigorous activities without worrying about it falling down.




Process photos



PROTOTYPING PHASE: SMARTWATCH

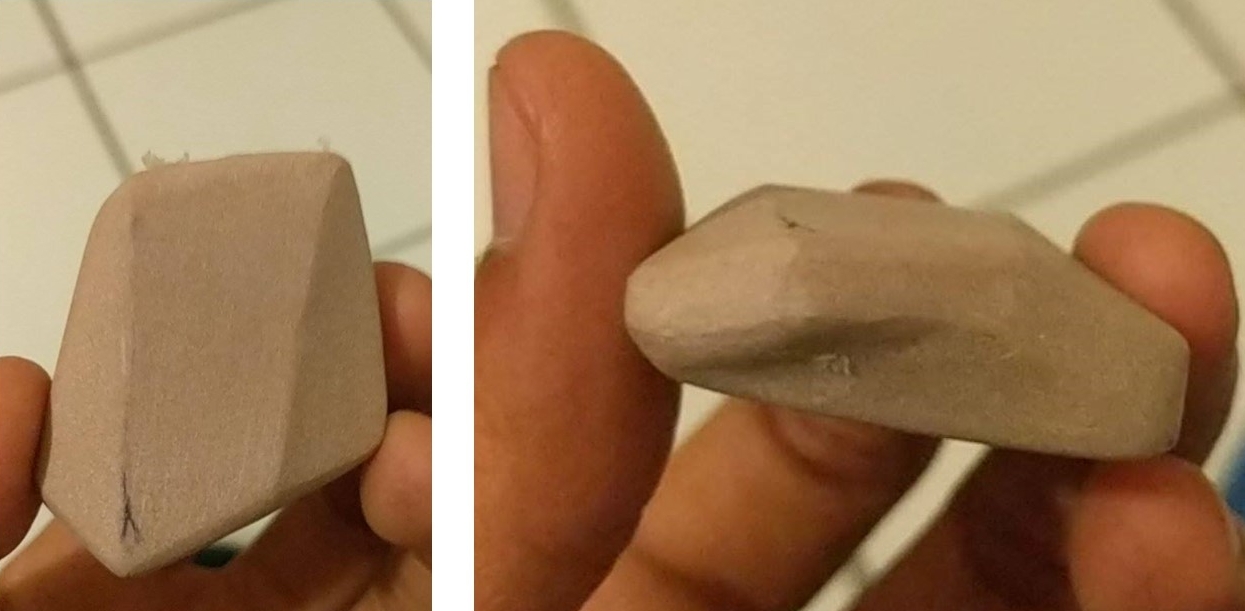

Smartwatch Ideation and building life size models with Ren foam, keeping in account about the different sensors and motors that were needed in the trackers. Also, tested different material tracker bands that could be easily adjusted and replaced.

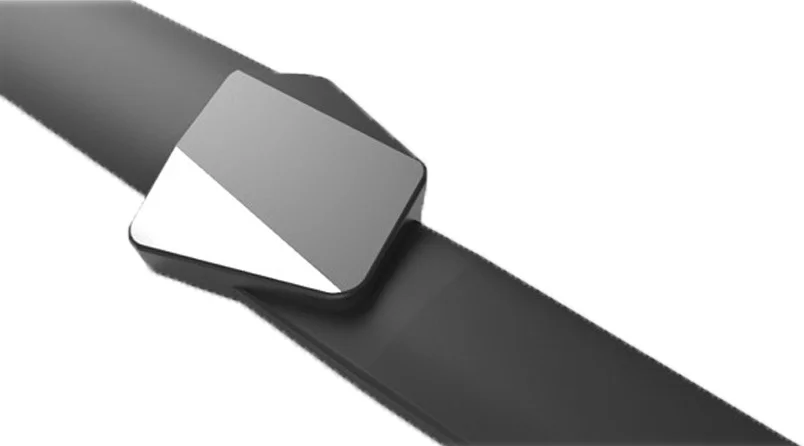

Smartwatch Rendering

Case Thickness

10 mm

Screen Customization

Three screens touch surface



Process photos


Ren foam Prototyping




Prototyping Phase

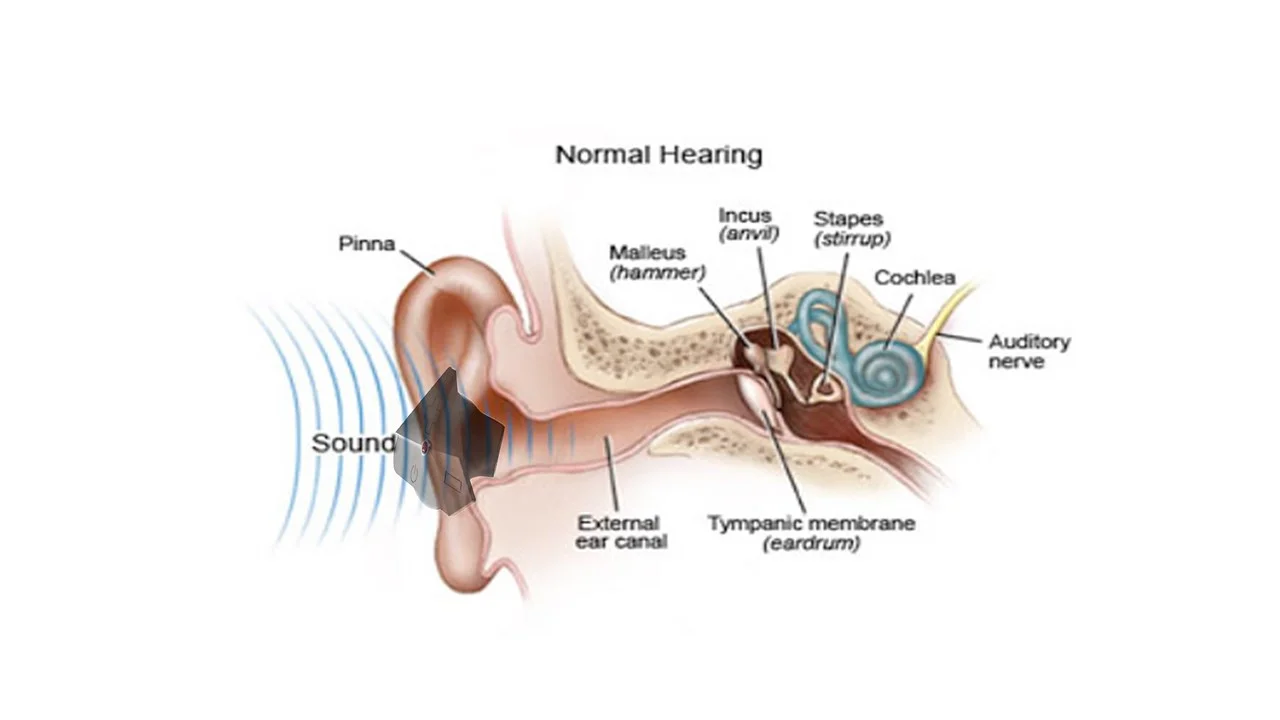

Earphones Ideation and life size models with Ren foam that were used for user testing. Designed to provide ambient sound experience and the interior of the earphones designed to comfortably rest in the ear canal for long duration of time.



Earphones Rendering

Features

Bluetooth Wearable

Touch Sensitive control panel

                     Wireless Charging





Design

Designed to provide ambient sound to the user, keeping in

mind about both aerobic and non-cardio workout.



Process photos



    Prototyping Phase

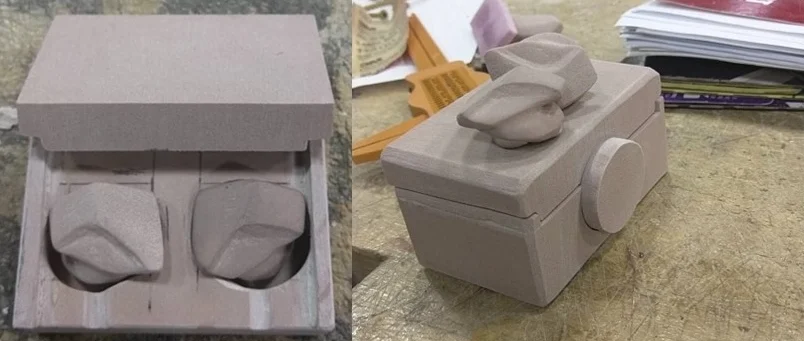

Charging case for both earphones and smartwatch. Prototyping life size models with Ren foam. While designing accounted for the size of battery to charge both earphone and smartwatch. Also, tested different locking mechanisms.



Charging Case Rendering


Features

  • Capable of charging both smartwatch and earphones.
  • Snap to charging for smartwatch on the roof of case.
  • Rest the earphones inside the box for charging.

Design

Design of the case cohesive with the other products. Size of the case is also designed to fit comfortably in a standard jeans pocket.

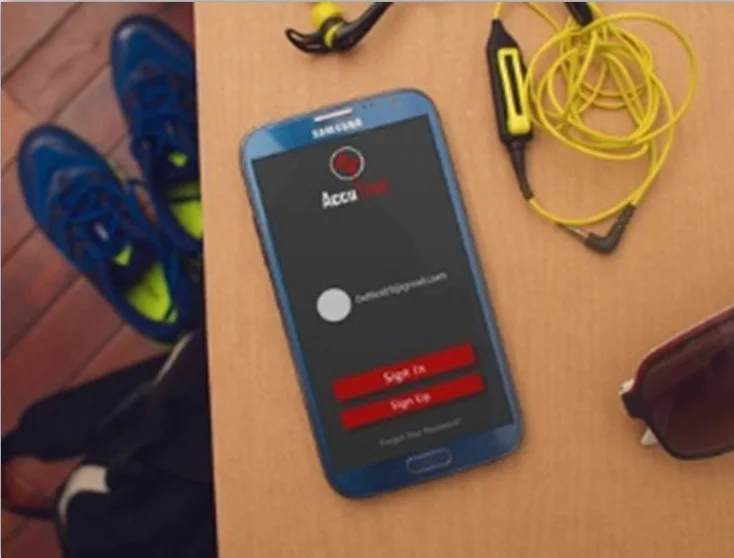

Application screens for customizing Accutrak products

app screens.jpg
